List 11
No Figure Item No. Description Size(mm) OEM No.

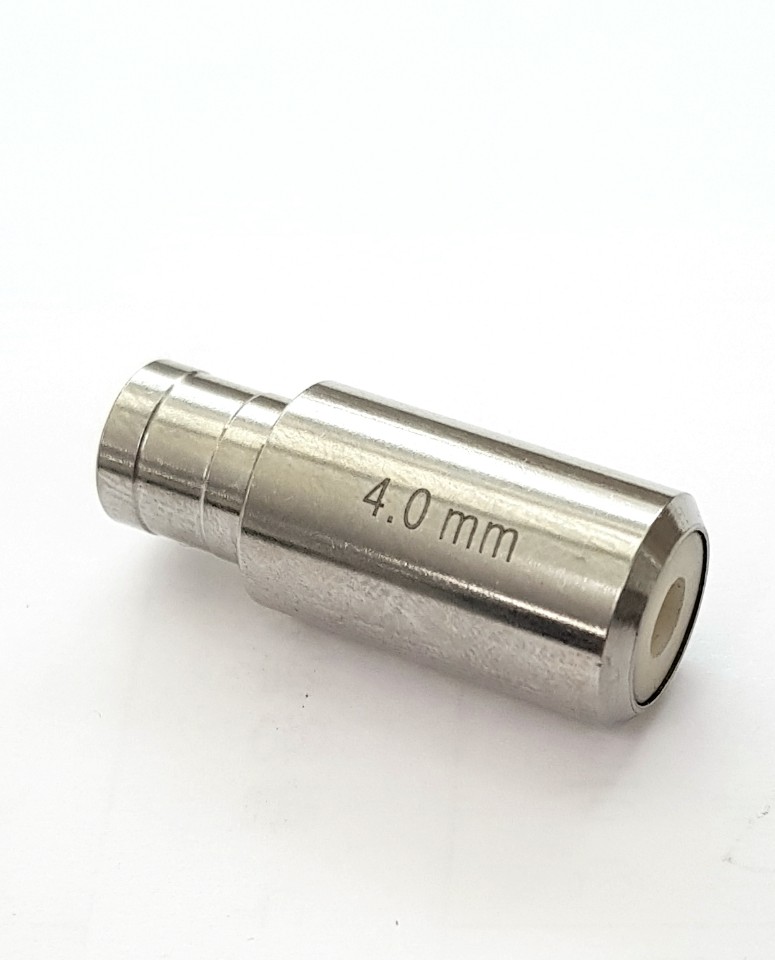

11 Single-C
Superdrill guide
Standard single-C type
Sise Min Ø3.5mm~Max Ø6.0mm
MinØ3.5
MaxØ6.0

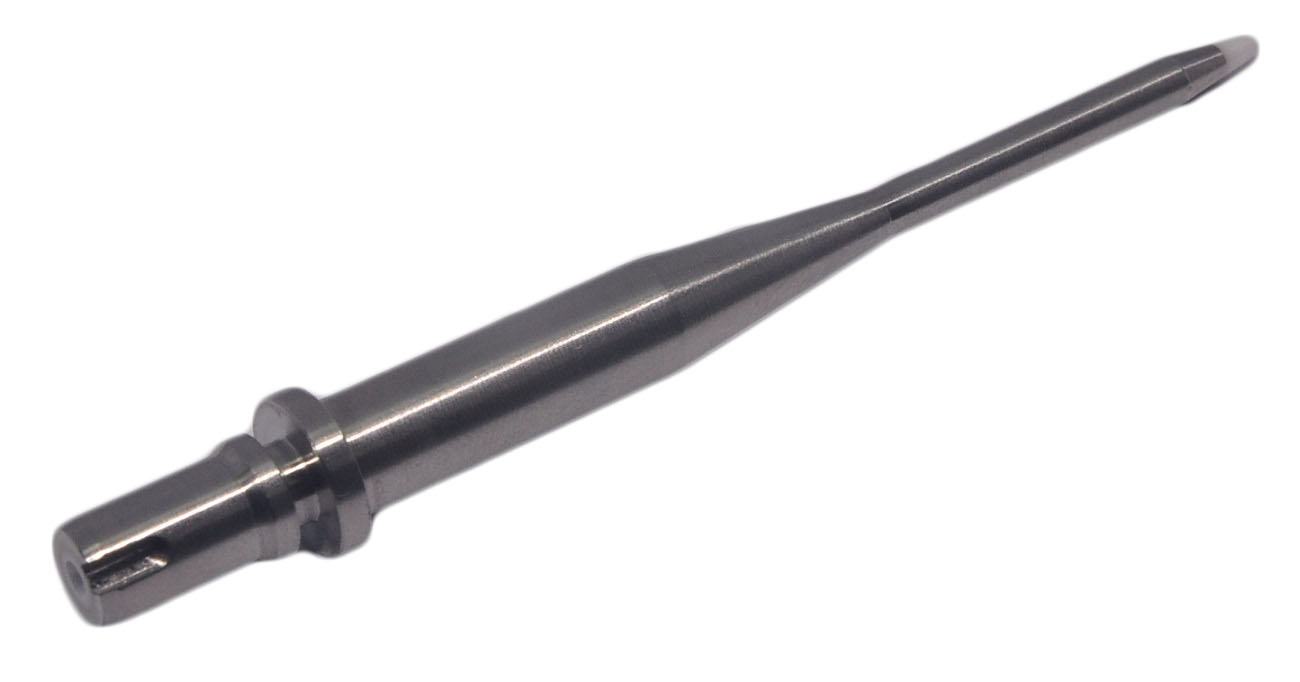

10 Noseguide
Superdrill guide
PW Noseguide type - Winbro's Amchem
0.30

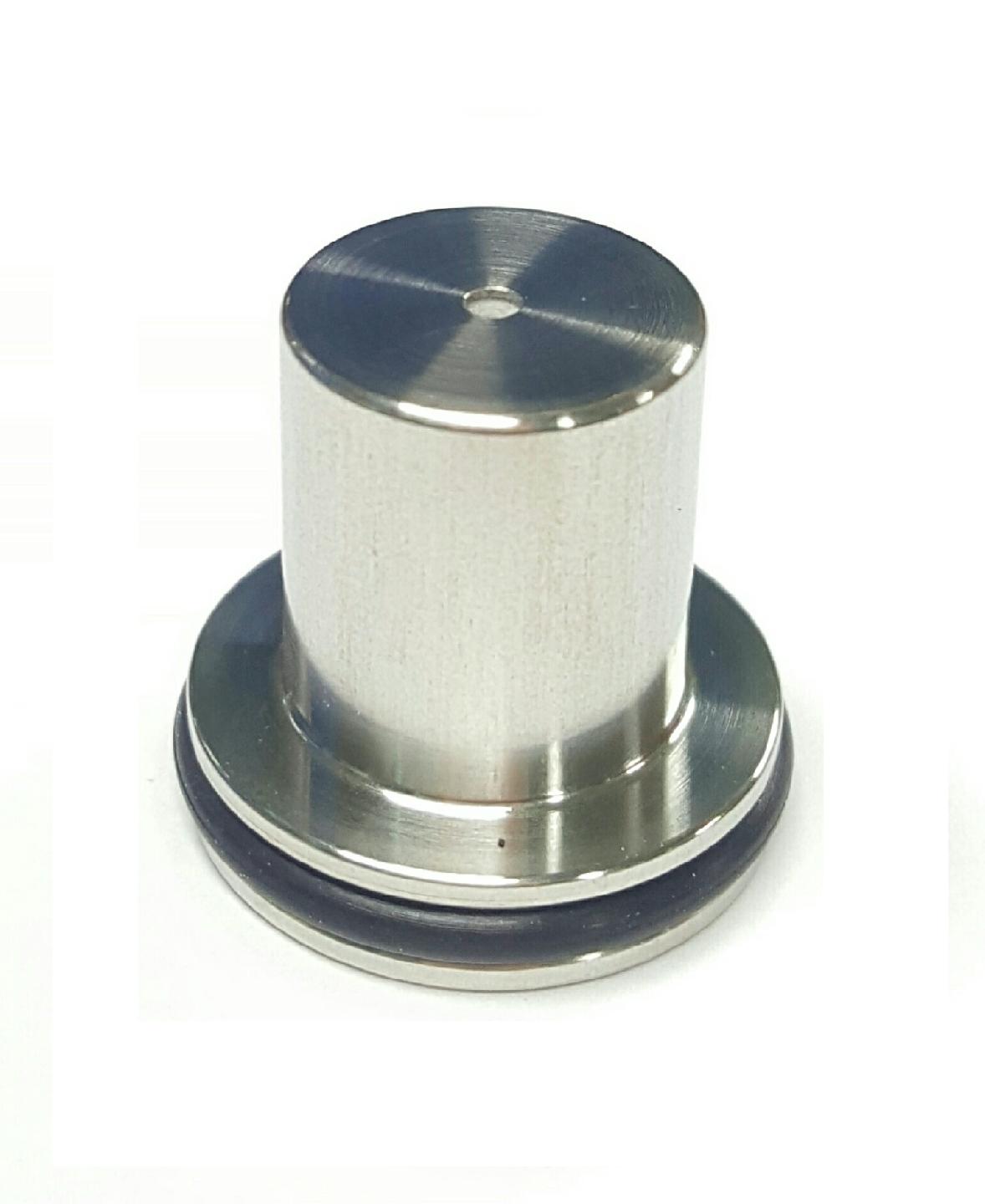

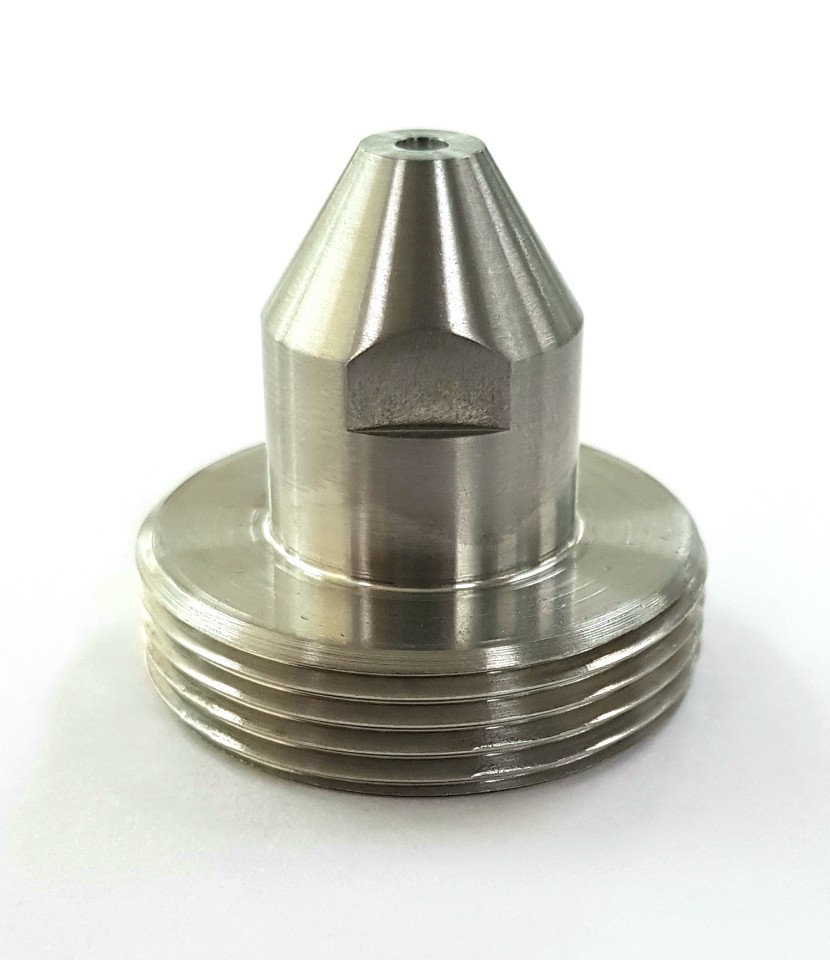

9 M129
Jet nozzle
0.5
0.75
1.0
1.5
X054D826H02
X054D826H07
X054D826H04
X054D826H01

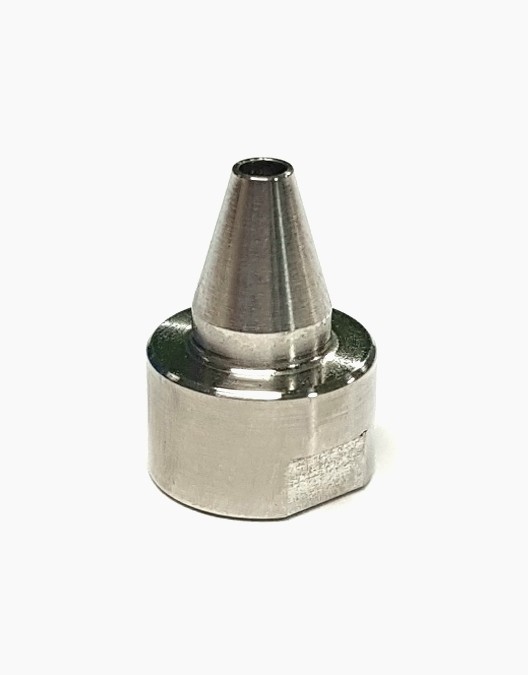

8 F128
Upper sub-guide-fine wire spec.for upper ceramic
Ø0.3-10×14mm (wire Ø0.15mm~)
α-xiB/xiC/xiDx/xiE series-AWF
0.35
0.55
A290-8104-X620
A290-8102-X620

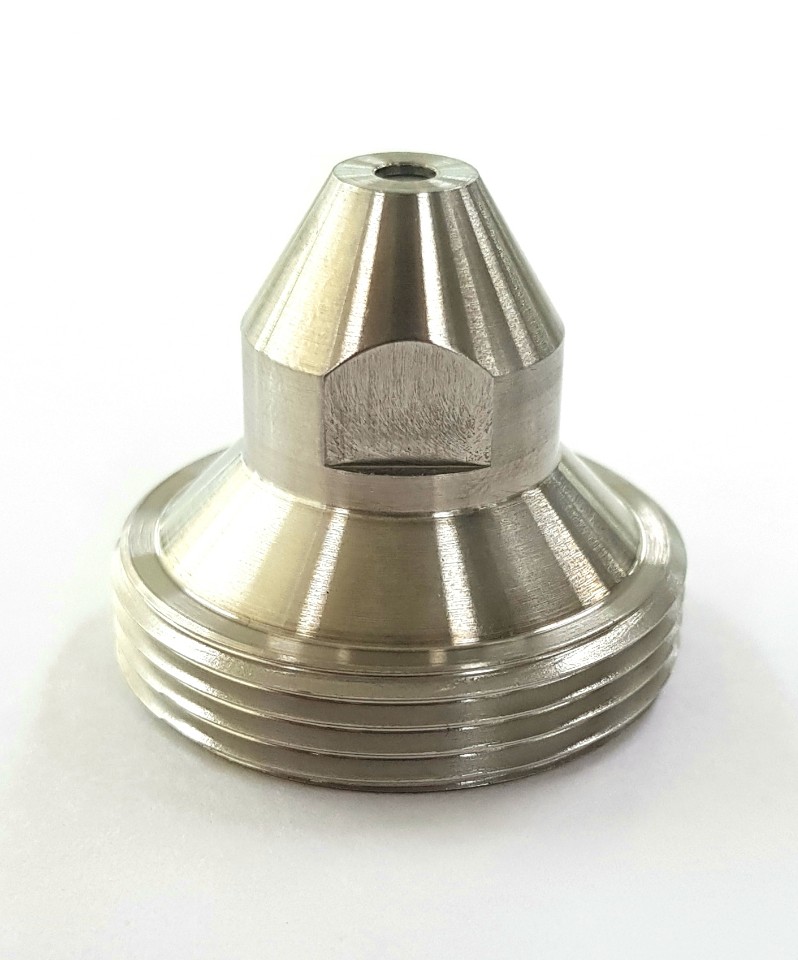

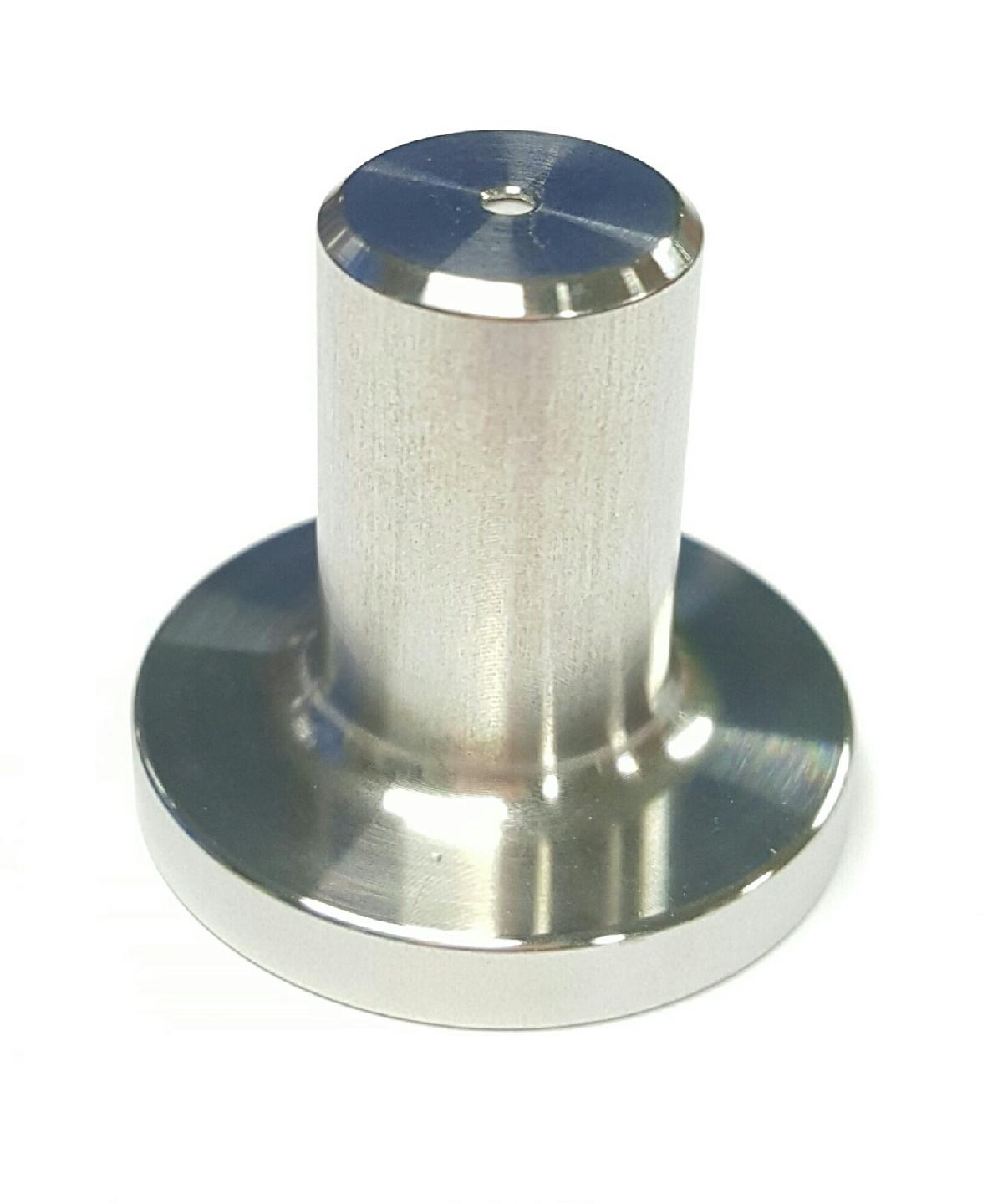

7 F125
Jet nozzle
∂ - A, B, C, iA, iB, iC, iD, iE Series
AWF
0.50
0.80
1.00
1.50
1.80
A290-8102-Y757
A290-8102-Y755
A290-8102-Y761
A290-8102-Y756
A290-8102-Y754

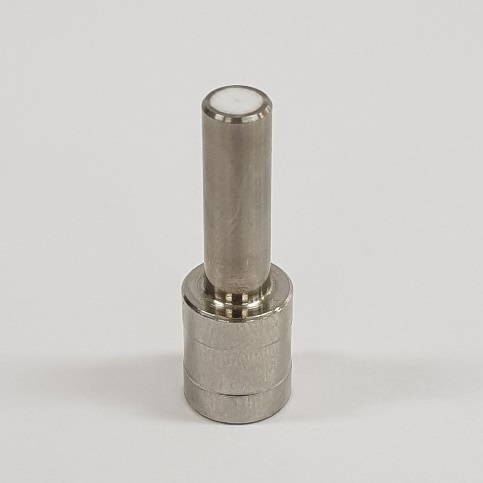

6 Dual-L type
Superdrill guide
Special dual - L type
0.30

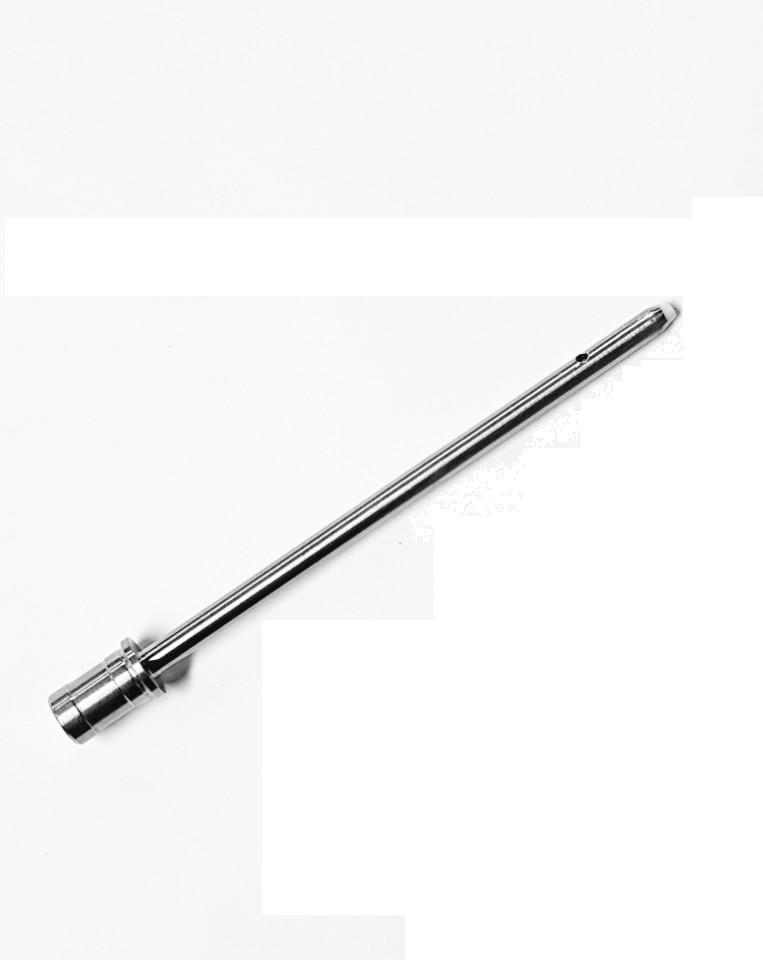

5 DUAL-K
Super drill guide
Special dual-K type
4 Dual-B
Superdrill guide
Standard dual-B type
Sise Min Ø0.3mm~Max Ø3.0mm
MinØ0.3
MaxØ3.0

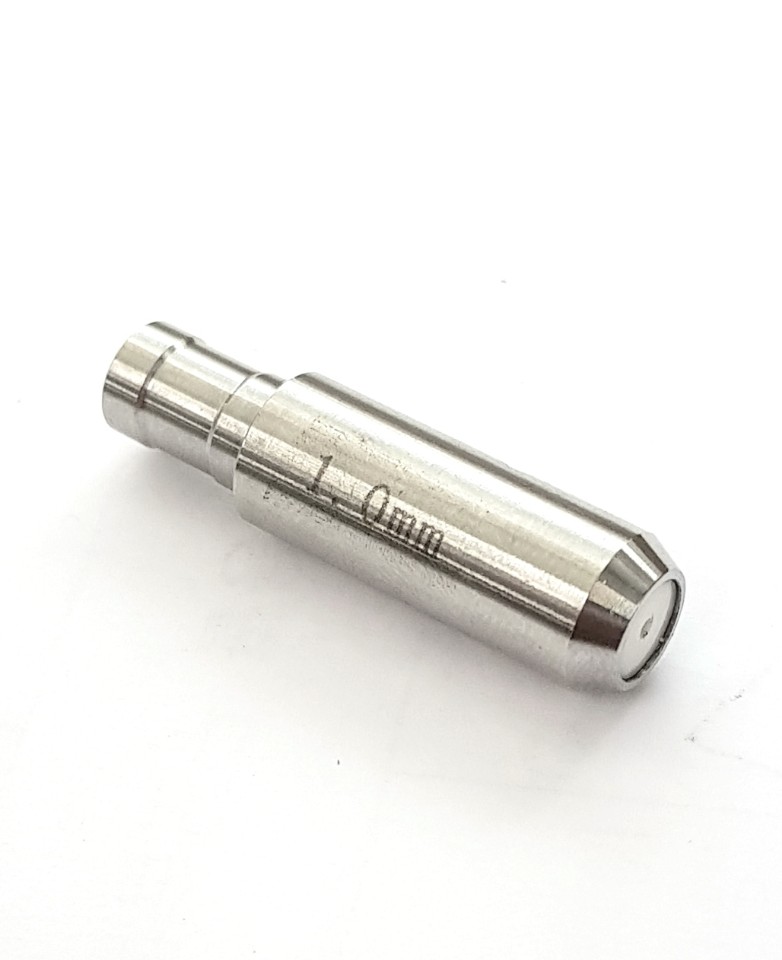

3 Dual-A
Superdrill guide
Standard dual-A type
Sise Min Ø0.05mm~Max Ø0.3mm
Min Ø0.05
Max Ø0.3
2 A120
Jet nozzle(New)
W32FB,W53FB
U series,DU043,DU064
0.5
0.7
1.2
33EC085A217
33EC085A218
33EC085A202
1 A119
Jet nozzle
W32FB,W53FB
U series,DU043,DU064
0.5
0.7
1.0
1.2
1.5
23EC085A217
23EC085A218
23EC085A219
23EC085A202
23EC085A220
